NAB SHOW 2023
- 개최일
- 2023/4/15〜2023/4/19
- 개최지
- USA (Las Vegas)
- 개최 장소
- Las Vegas Convention Center

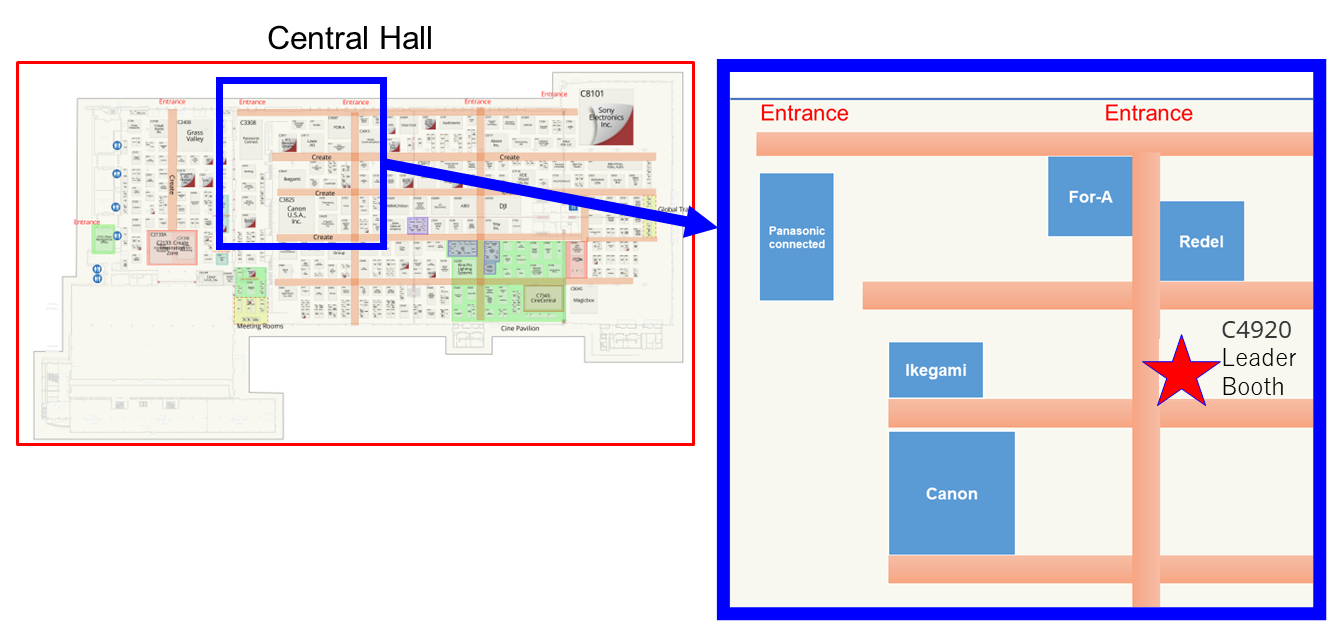

- 당사(리더 전자) 부스
- C4920
Leader Electronics will be exhibiting at the NAB Show 2023 in Las Vegas from 15-19 April.
A key theme of the exhibition will be 'Making Your SDI/IP Transition Smooth', demonstrating technologies for effectively operating mixed IP & SDI infrastructure environments during the transition period, including SDI to IP, HD to 4K UHD, SDR to HDR, and new at NAB 2023 support for compressed IP JPEG-XS.
Leader Electronics and PHABRIX meet all measurement and signal monitoring needs of broadcasters, production studios, remote production centers, mobile vehicle operators, post-production companies, equipment manufacturers, online media service providers, etc. At the NAB stand, the two companies will showcase their latest technologies.

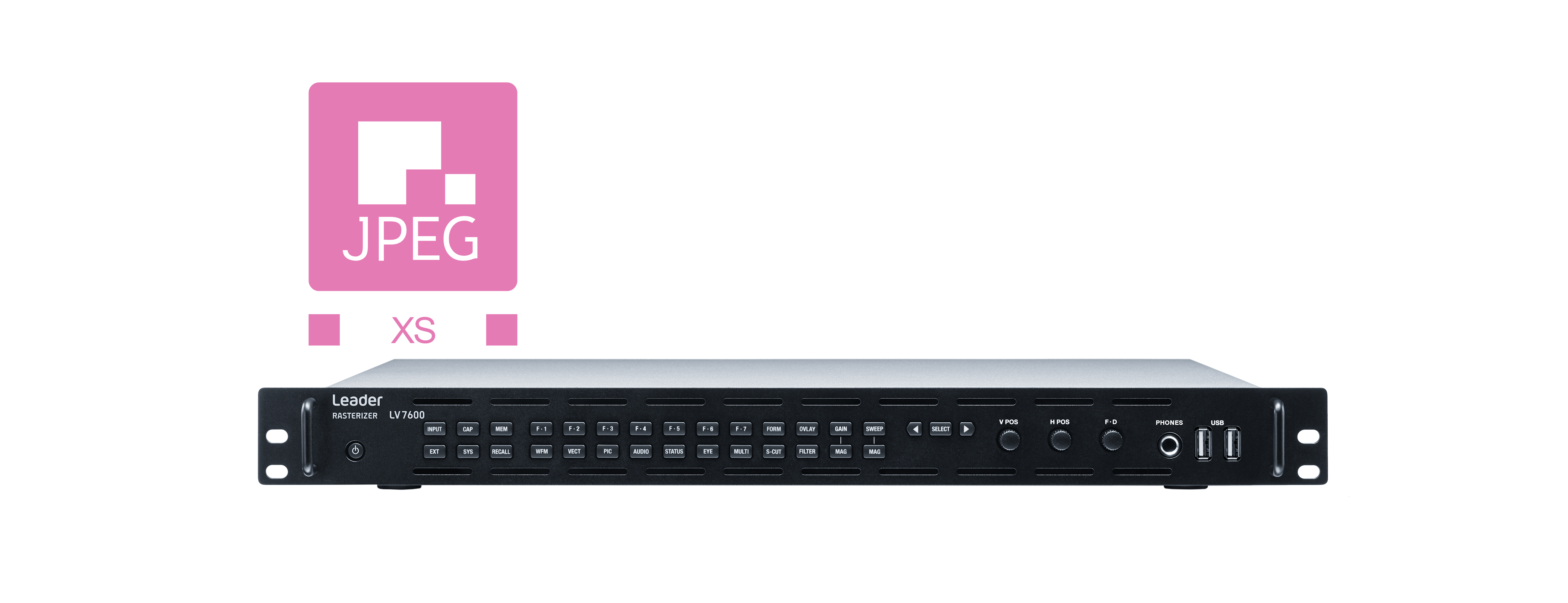

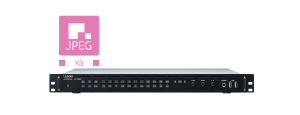

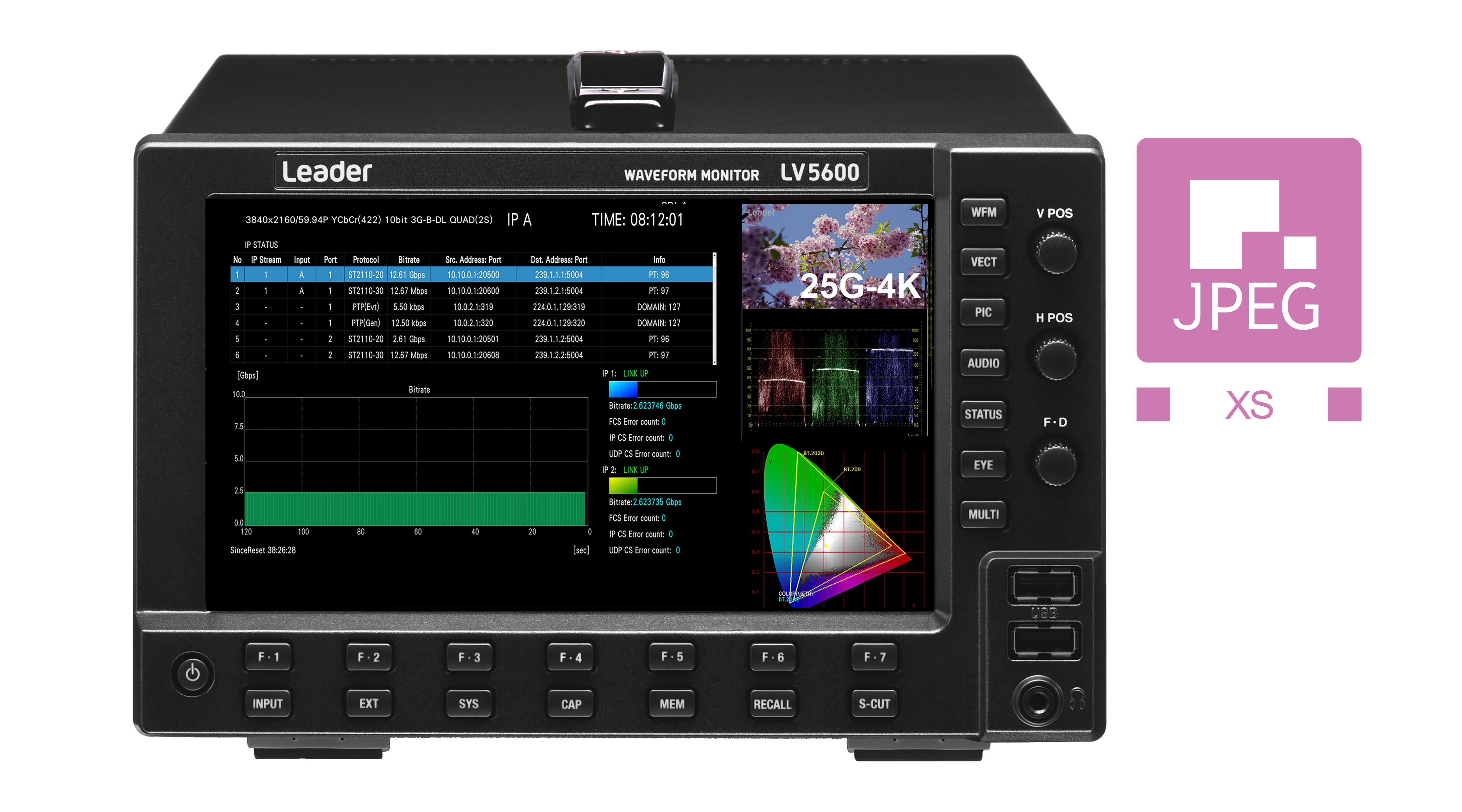

Waveform monitor LV5600 / Rasterizer LV7600 ‘True Hybrid’ IP & SDI
The LV5600-SER33 and LV7600-SER33, JPEG-XS-compatible options, will be exhibited. The LV5600-SER33 and LV7600-SER33 are the world's first JPEG-XS-compatible waveform monitors and rasterizers.
JPEG-XS is an ultra-low latency, lightweight image encoding system that compresses data volumes from 2:1 to a maximum of 15:1, enabling low-cost infrastructure equipment with visually loss-free image quality.
This option enables stream analysis, encoding and decoding of SMPTE ST 2110-22 (JPEG-XS), compressed video signals, packet header analysis, packet error detection and comparison display of JPEG-XS, SDP and ST2110-40.
The system enables the evaluation of JPEG-XS compressed video signals. It can also generate a SMPTE ST 2110-22 (JPEG-XS) compressed video test signals, providing greater convenience to broadcasters and network operators.
A demonstration of the JPEG-XS input/output will be exhibited on actual equipment.

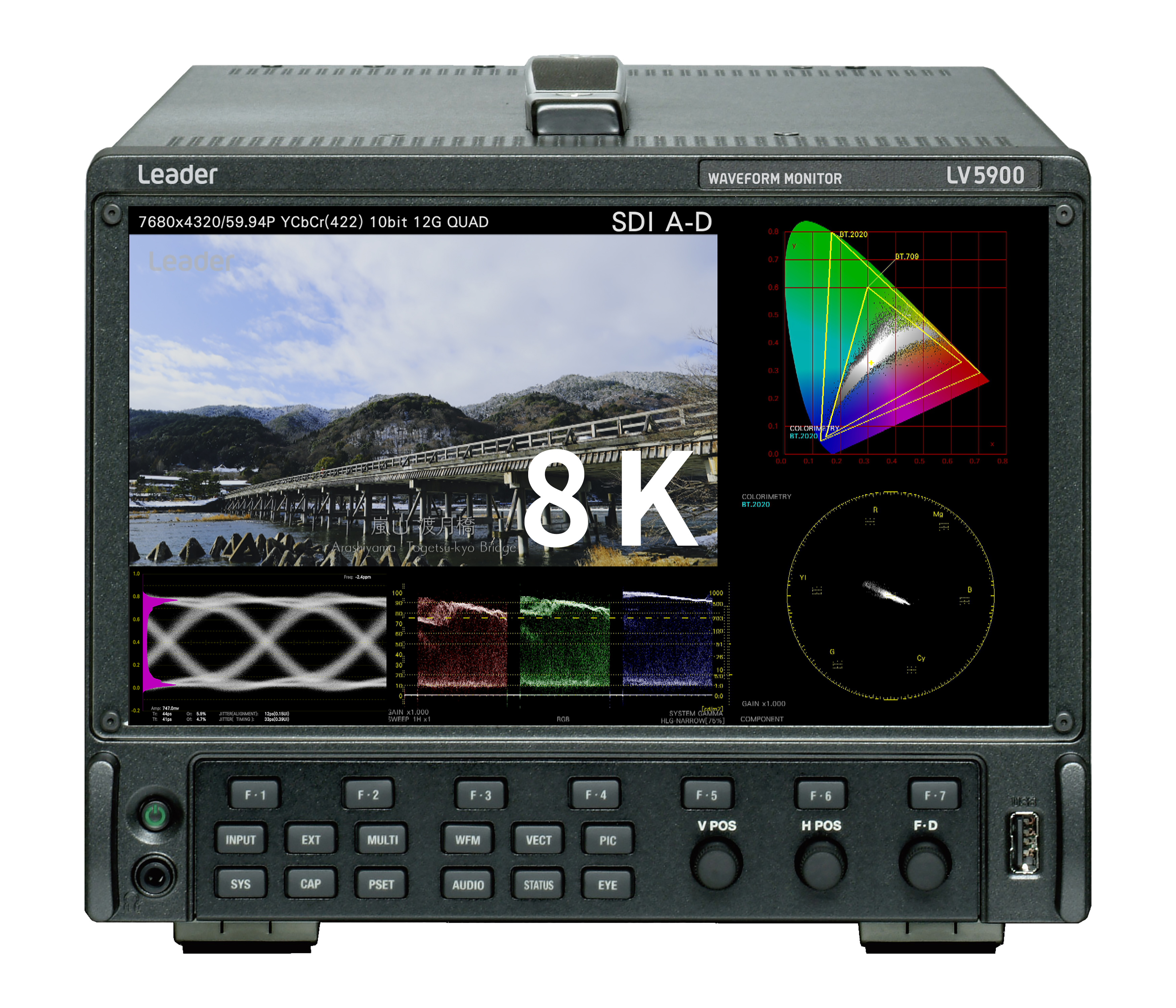

8K-compatible waveform monitor LV5900A
It features a range of tools for content creators, broadcasters and equipment manufacturers transitioning to 8K. The focus detection algorithm developed by Leader Electronics applies non-linear super-resolution technology to enable sensitive focus detection even in low-contrast video, which was previously difficult to detect. It is compatible with the SMPTE ST2082-12 standard for receiving 8K video over a 12G-SDI quad link. Compatible with SMPTE ST2082-12 standard.
LV5900

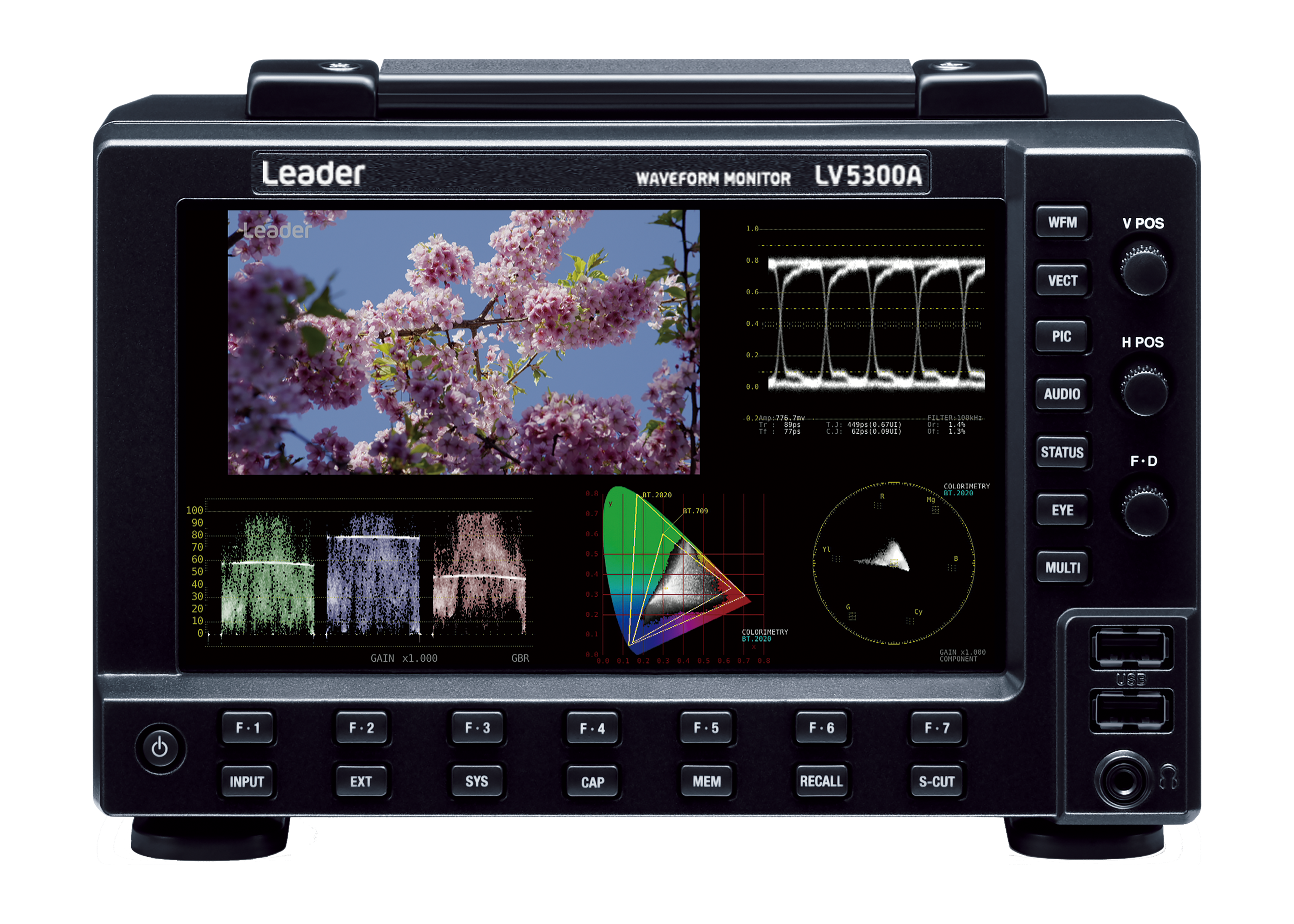

Waveform monitor LV5350 / EYE pattern-compatible waveform monitor LV5300A / Rasterizer LV7300
Designed for camera crews, colorists, editors and support technicians working with SDI signals, the LV5350/LV5300A can be powered from mains or battery.
LV5300A LV5350
LV7300
IP packet monitoring device LVB440
The system can monitor a large number of high bit-rate IP signals simultaneously in large broadcast facilities or in remote productions and is a powerful product for rapid troubleshooting and quality improvement of audio and video streams in IP transmissions.
It can also monitor 8K signals and decode JPEG-XS as an option.
The newly launched IP TSG option and, as a reference exhibit.
LVB440

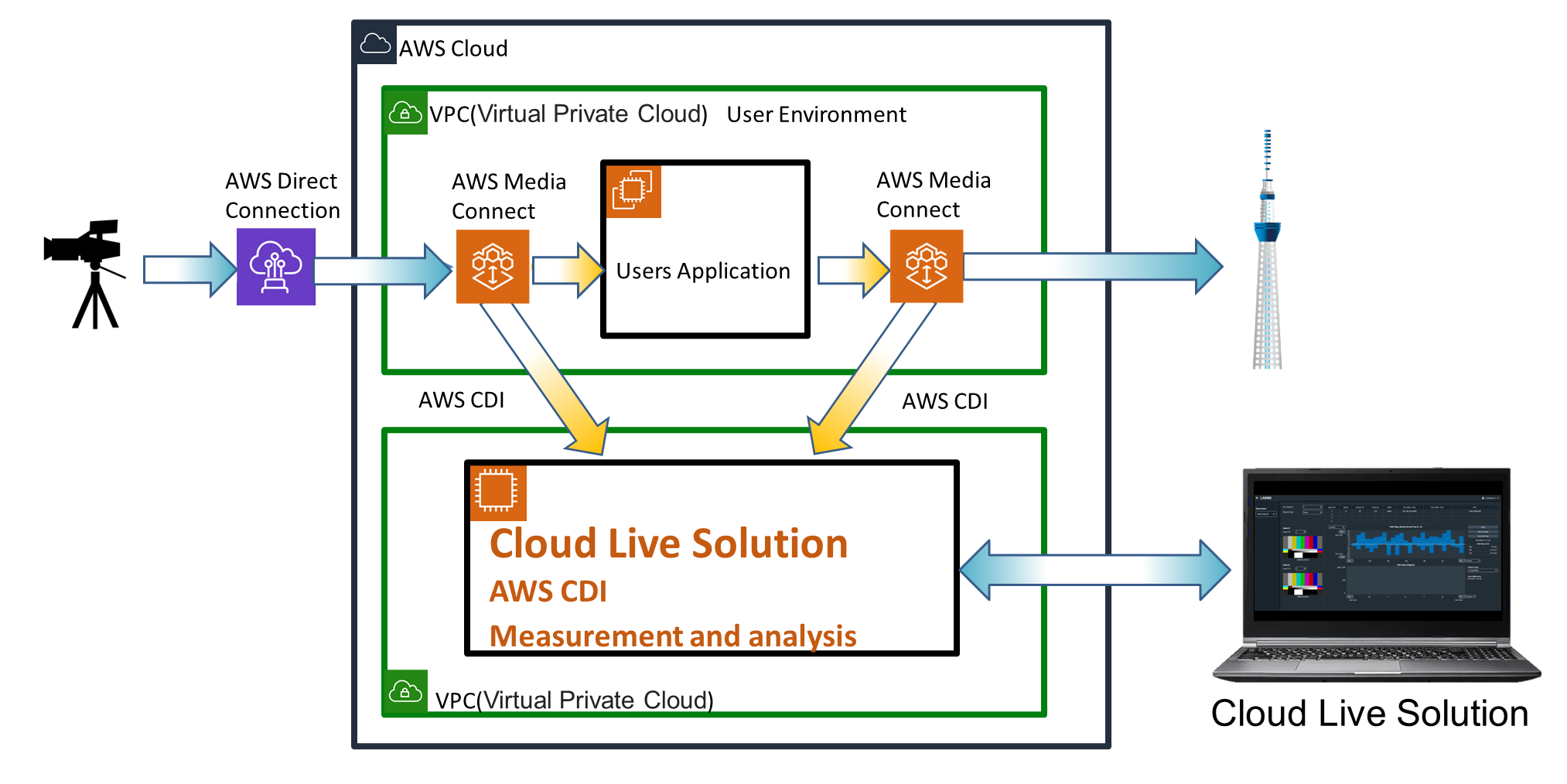

Cloud solutions
Measure and analyze uncompressed live video in the cloud.
AWS CDI (Cloud Digital Interface) measurement, analysis, picture display, waveform display, vector display, SCTE104 analysis display, CC708 analysis display, PID display, TC display, ANC, summary display, format display, path delay measurement, flow table display Bit-rate measurement is available.
Cloud solutions
PHABRIX Qx series

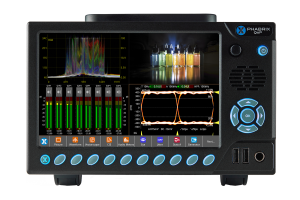

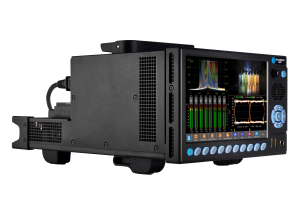

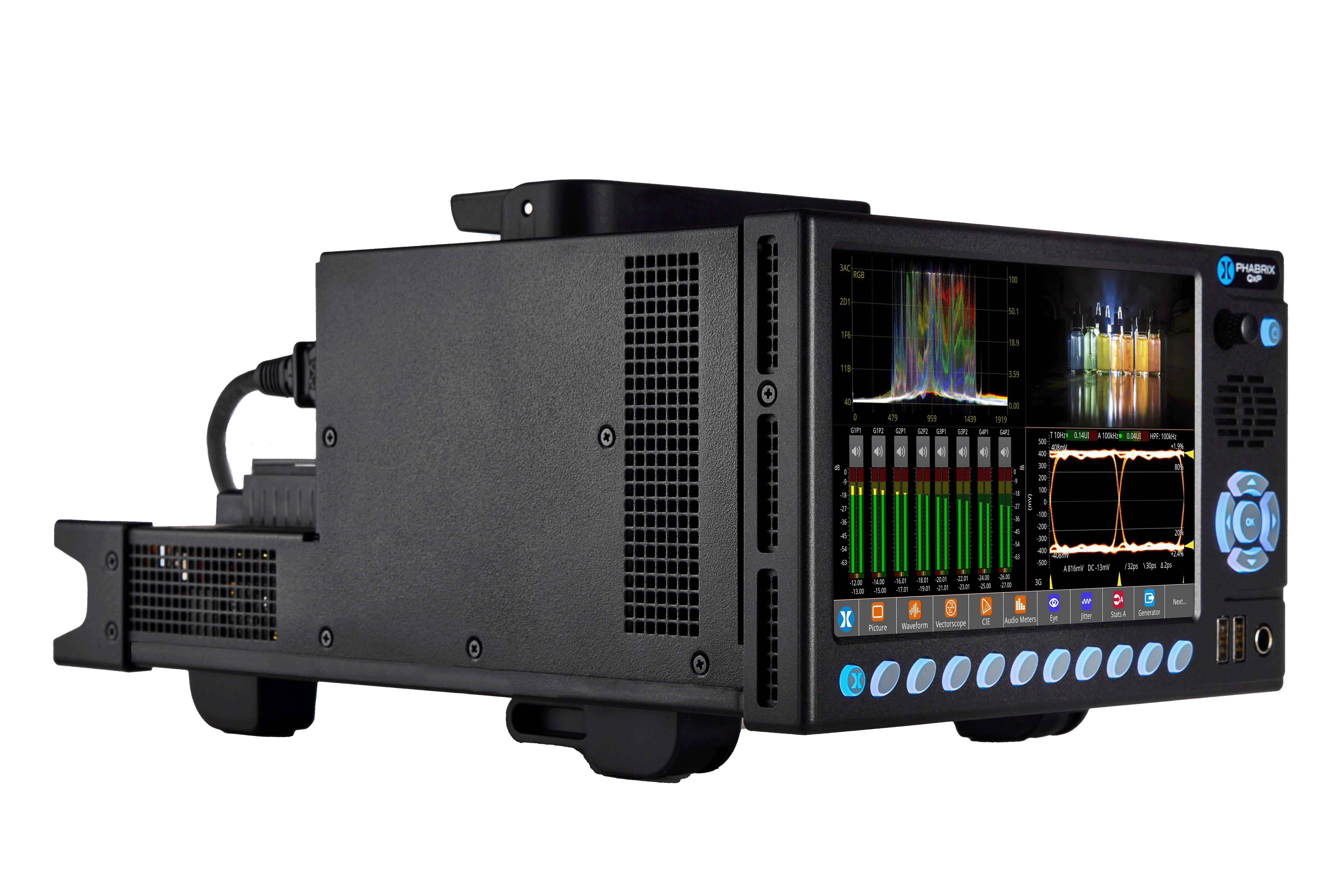

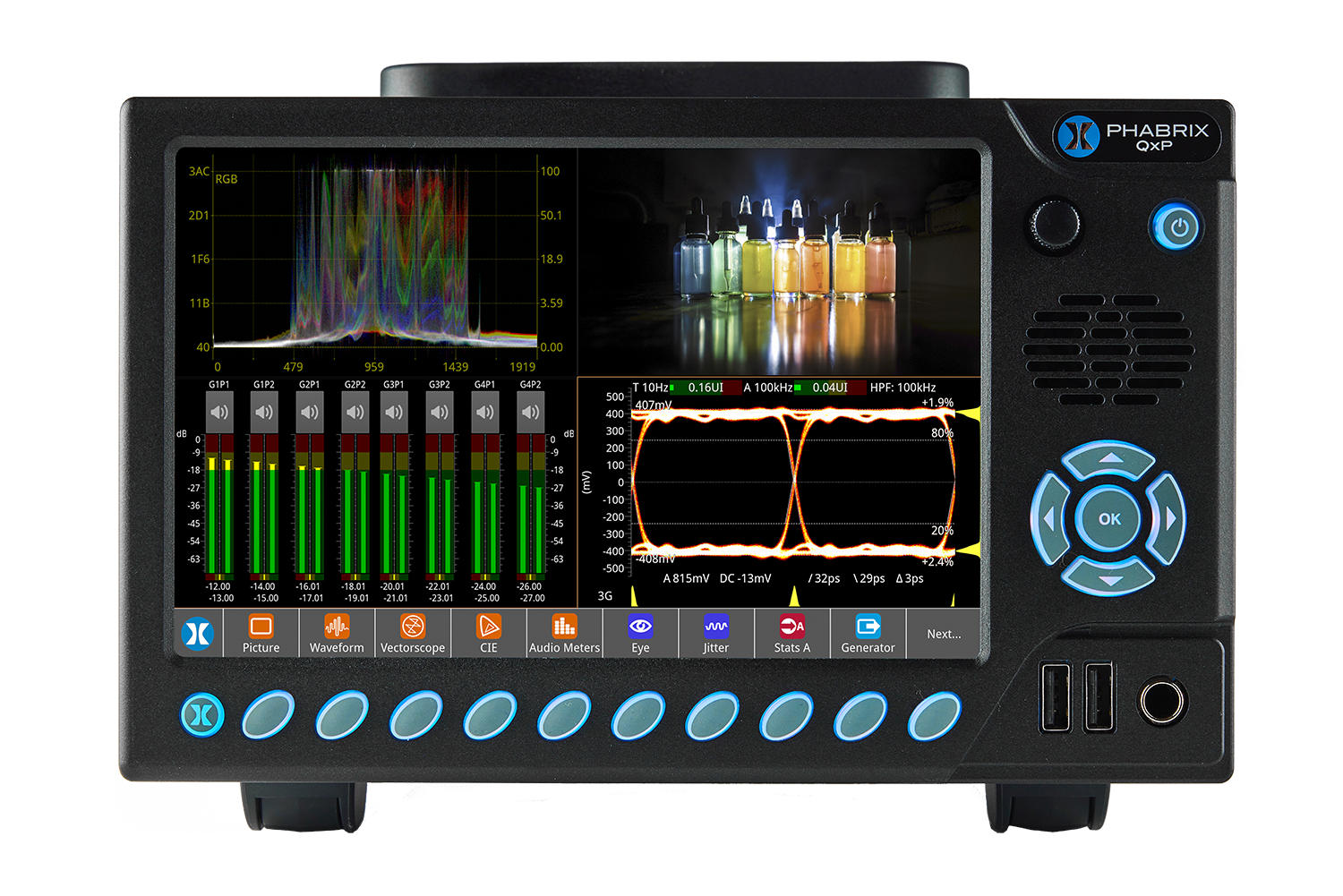

World's first!!! 4K 25G-IP/12G-SDI portable waveform monitor (battery-powered)
The QxP is a high-performance product capable of monitoring and measuring 25G-IP and 12G-SDI signals. The standard specification supports IP input and supports SMPTE ST2110, ST2022-6, PTP and NMOS. By selecting a base model or adding options, the required functions can be used from SDI input, 4K IP, IP and SDI TSG, SDI EYE/JITTER analysis, SDI stress, HDR, PCAP and more.
The power supply is AC and DC and can also be powered by industry-standard camera batteries, making measurements portable. The display unit has a high-resolution 7" monitor for easy monitoring. An external HDMI monitor can also be used for display. Up to 16 measurement windows can be displayed simultaneously, and the measurement windows can be combined by selecting the display size from 1/16, 1/4 and full size.
QxP

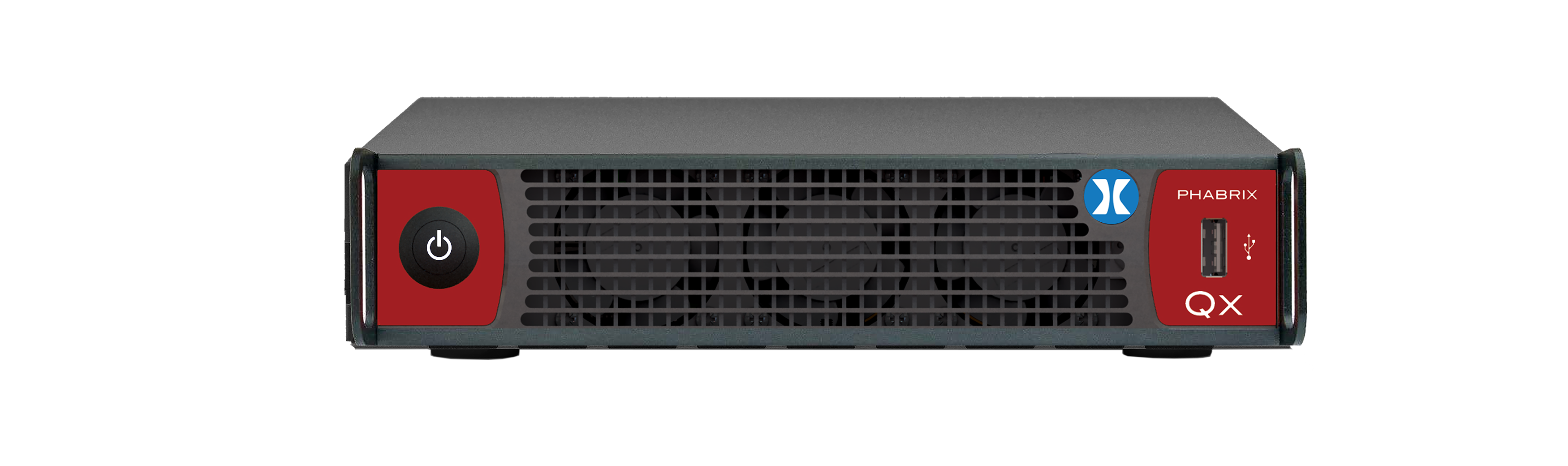

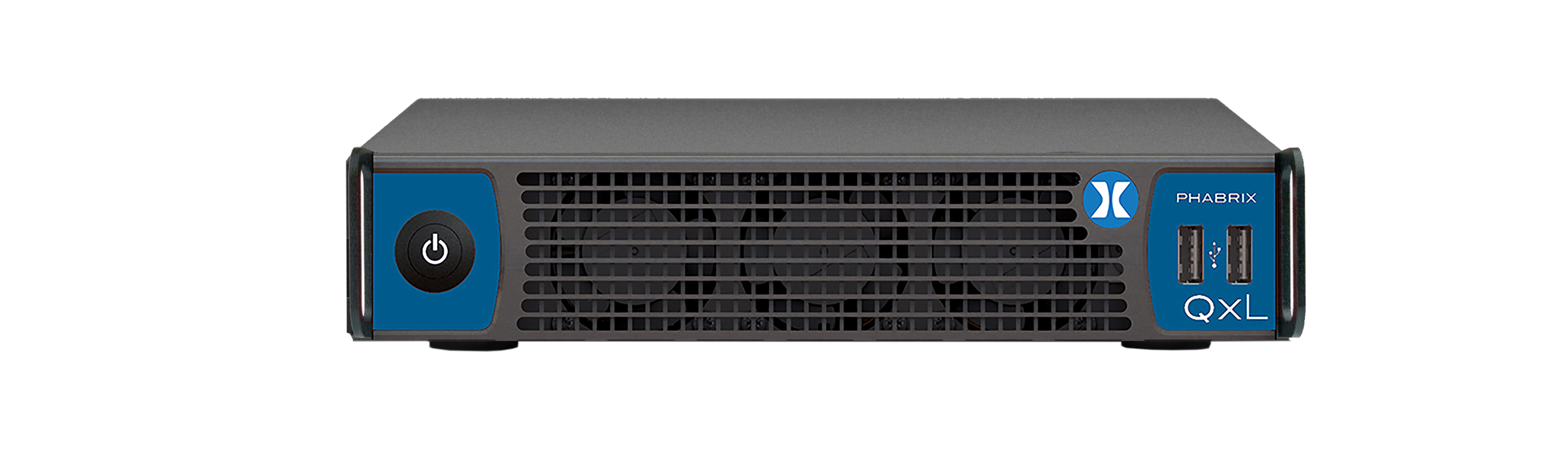

QxL / Qx
Compact, 1U half-rack size, yet highly functional and multifunctional 4K-compatible IP/SDI hybrid rasterizer.
What's new in QxL / Qx
Enhanced AMWA NMOS support, effective in connecting and networking NMOS controllers.
Updated NMOS receiver to provide more detailed information on the state of the NMOS API, to aid analysis and debugging of NMOS interoperability.
QxL has added NMOS transmit capability to its 2110-20/30/31/40-compatible generators, which support both 422 and 444 video formats on the 2110-20.
QxL's new EUHD option now analyses and outputs UHD/4K YCbCr/RGB 444 formats from 47.95P to 60P.
New PCAP 25G IP PCAP 4GB capture tool (Qx has 10G line rate and 1GB PCAP) is available as PCAP license. The tool provides flexible options for capturing live IP traffic on single or dual media interfaces in 2110 mode.
New Dolby E Decoder and Metadata Analyzer features Dolby E Decoder can be licensed to clearly and easily display Dolby E metadata present in Dolby E and ED2 audio streams Timing display for Dolby E streams is available for SDI or ST 2022-6 broadcast chains.
QxL QX
PHABRIX Sx Series

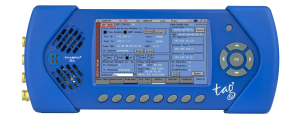

Sx TAG IP-enabled portable analyzer generator
SxE EYE-enabled portable analyzer generator

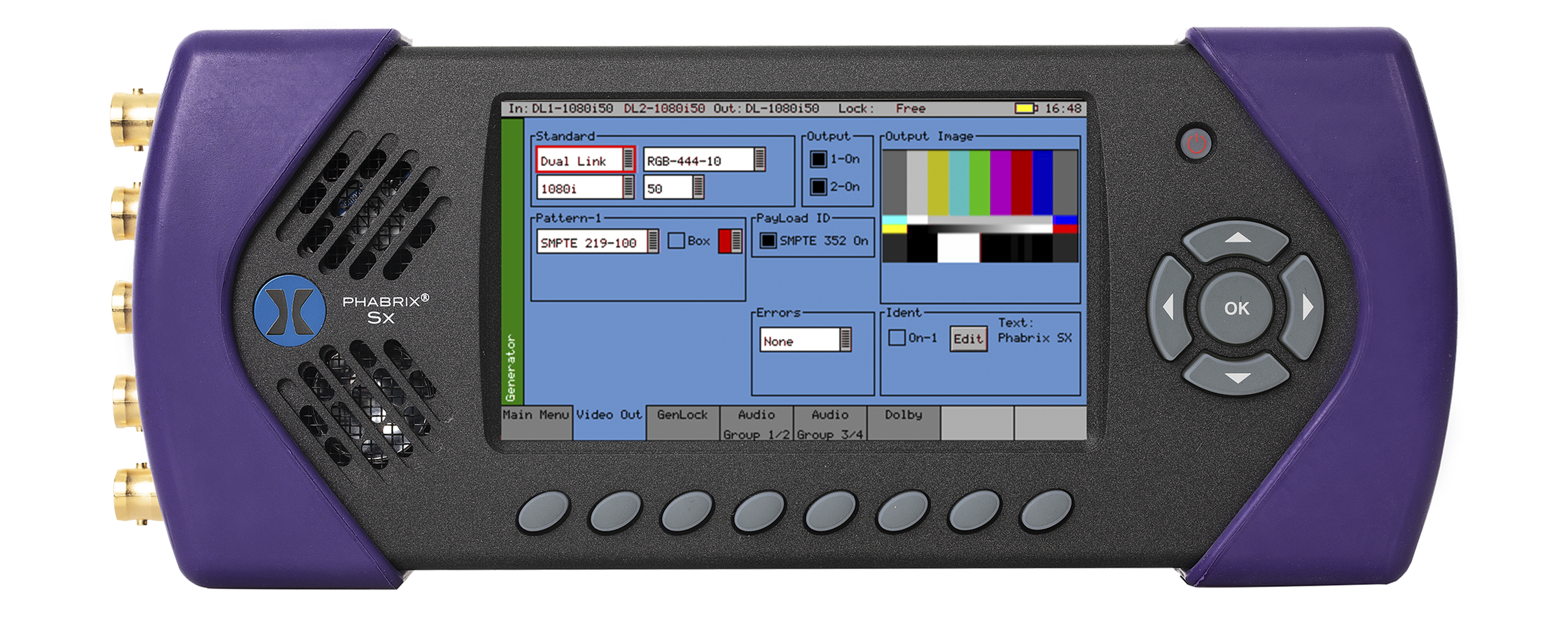

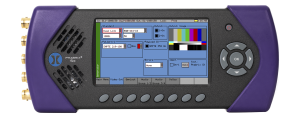

SxD Dual-link ready portable analyzer generator
SxA SDI-enabled portable analyzer generator
The PHABRIX hand-held instrument is popular with equipment manufacturers and other industries.
They are equipped with a signal generation function so that transmission lines and equipment can be tested.
Products can be selected to suit the application, such as the Sx TAG, which is IP-compatible, and the SxE, whose eye pattern can be observed.
Tx TAG SxE
SxD SxA
